PCB pads detect
Roberto Spray from Italy  [3 posts]
3 years
My first look to this program... It is very interesting!

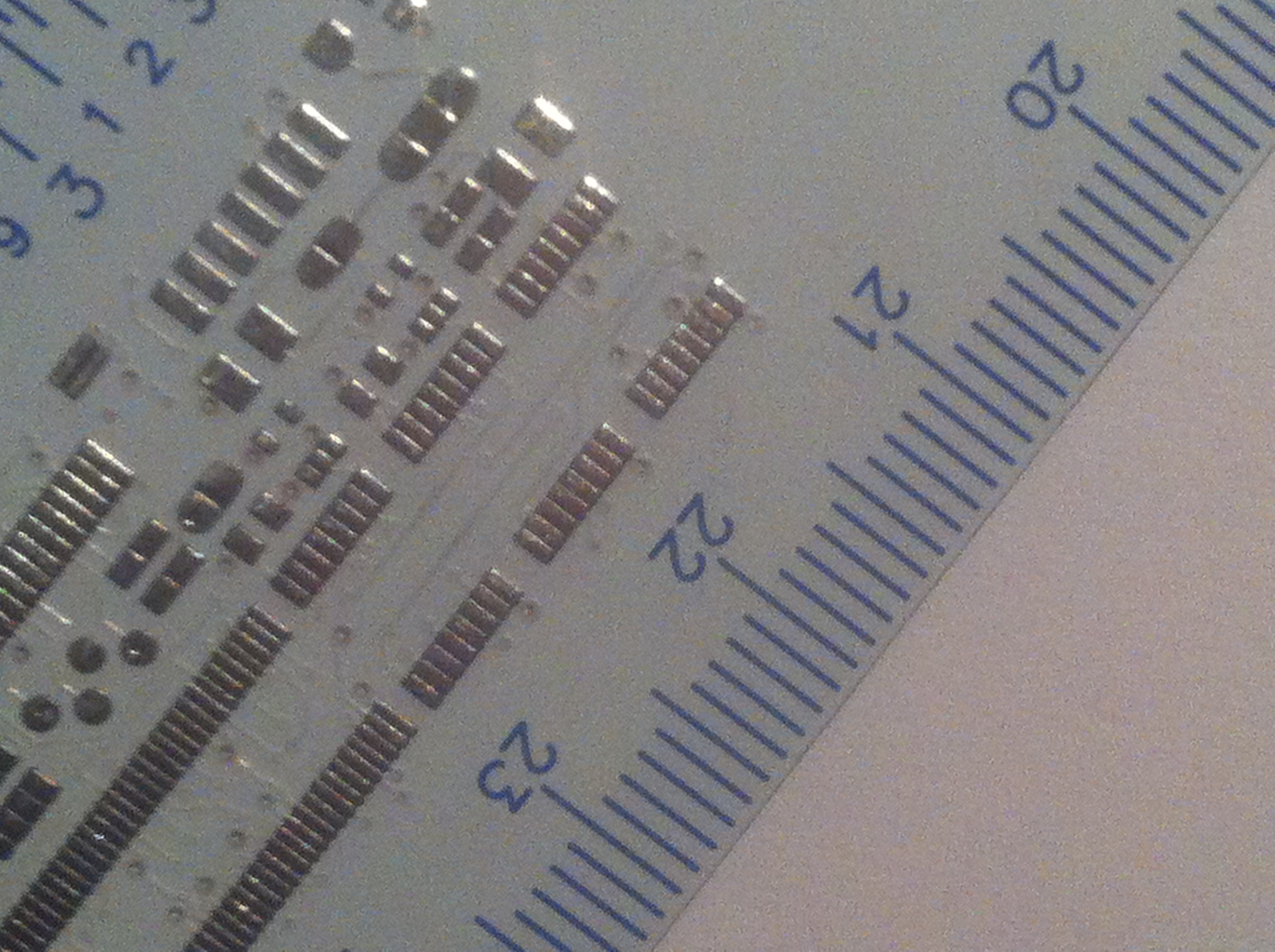

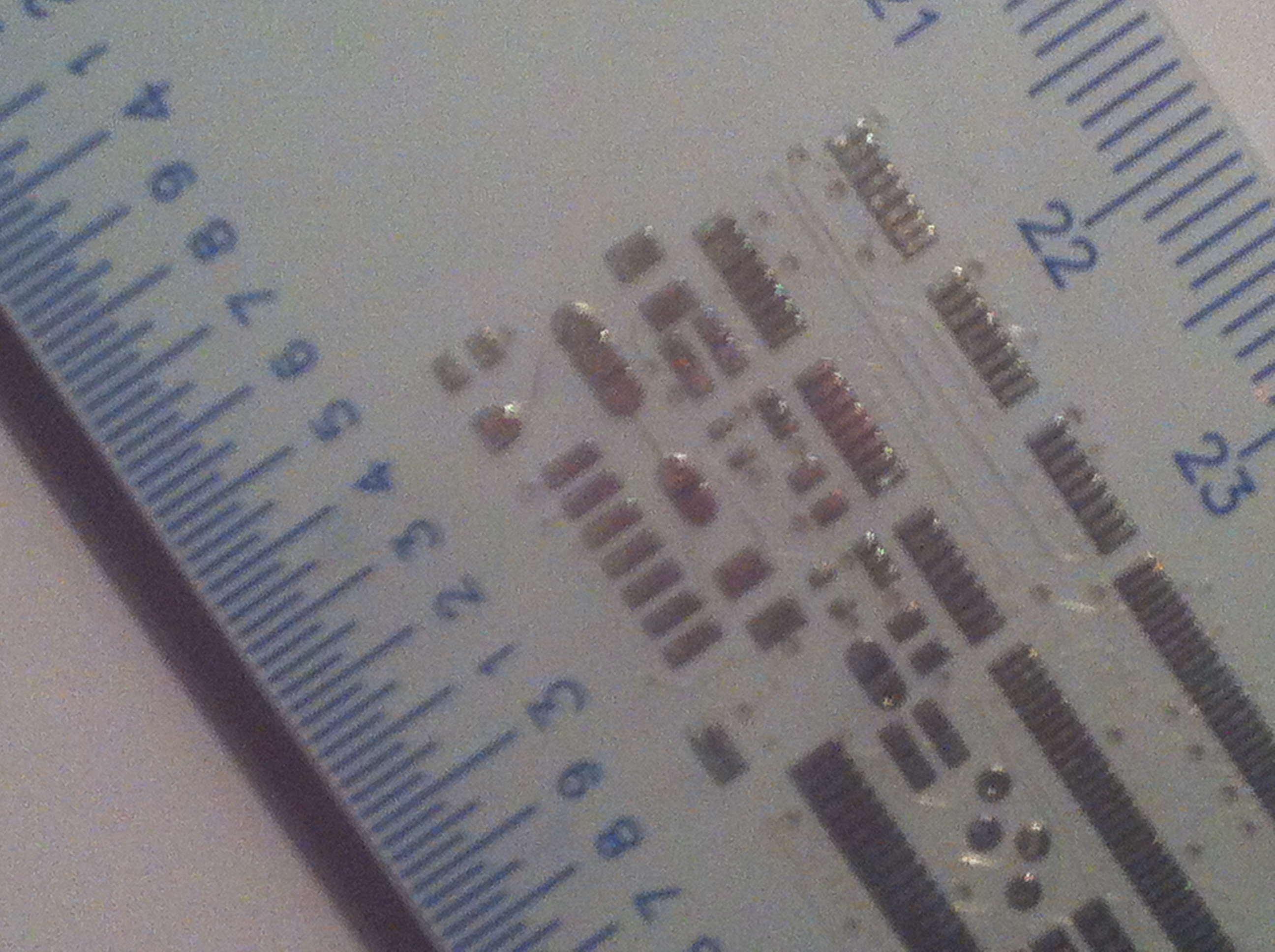

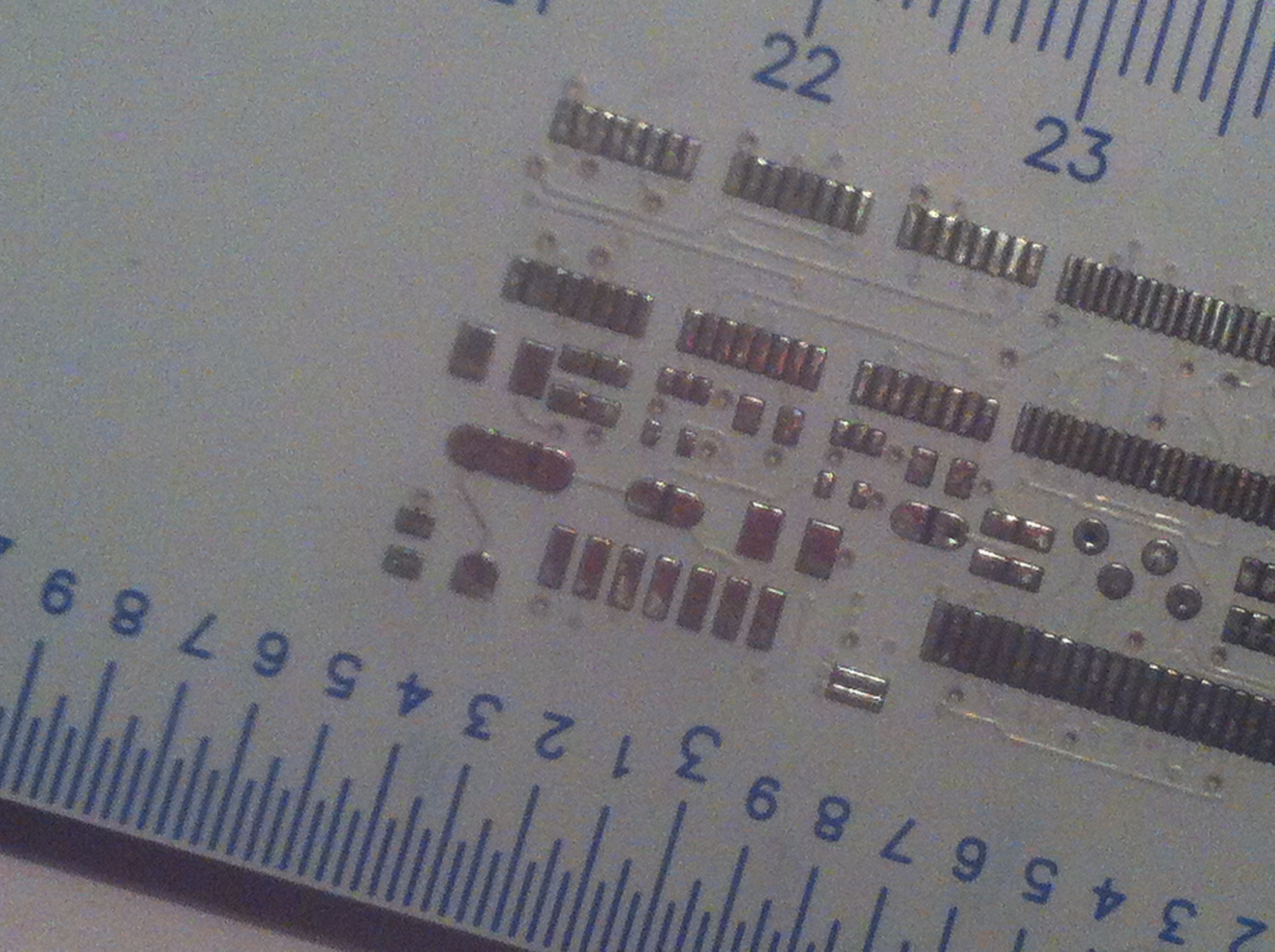

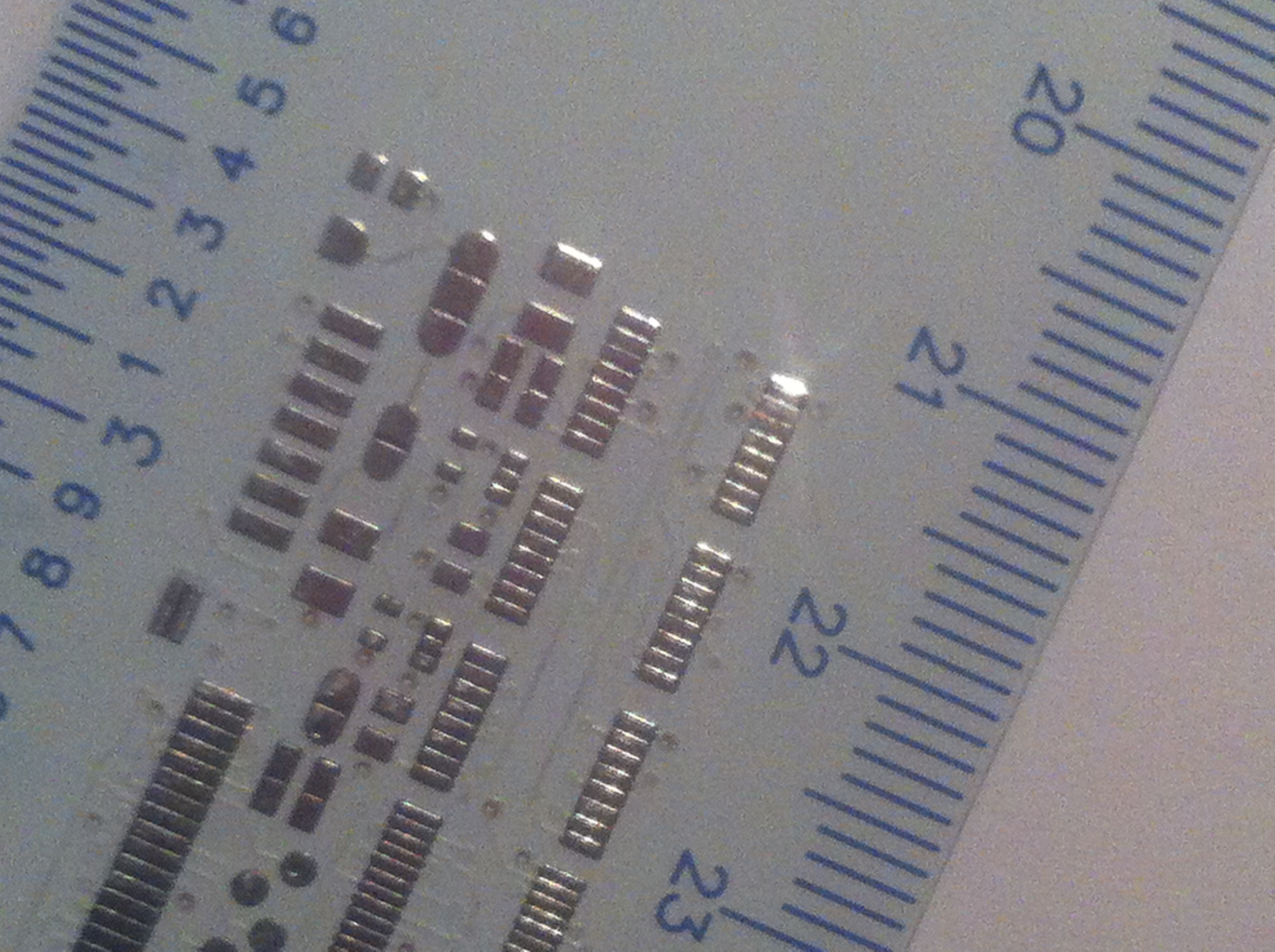

As you suggest to post pictures in the tutorial, I send these... I hope to do not disturbe.
I want to detect and position the 7 pin pads on this PCB, to be able to pickup with my robot arm. Your help will be highly appreciated. :)

Best Regards

Roberto


Steven Gentner from United States  [1370 posts] 3 years
Try the attached. It appears to work on all your posted images. Naturally, you will need many more to test as some assumptions like size can easily be violated.

STeven.




program.robo
Roberto Spray from Italy  [3 posts] 3 years
Thank you. I will work on it for a while...
